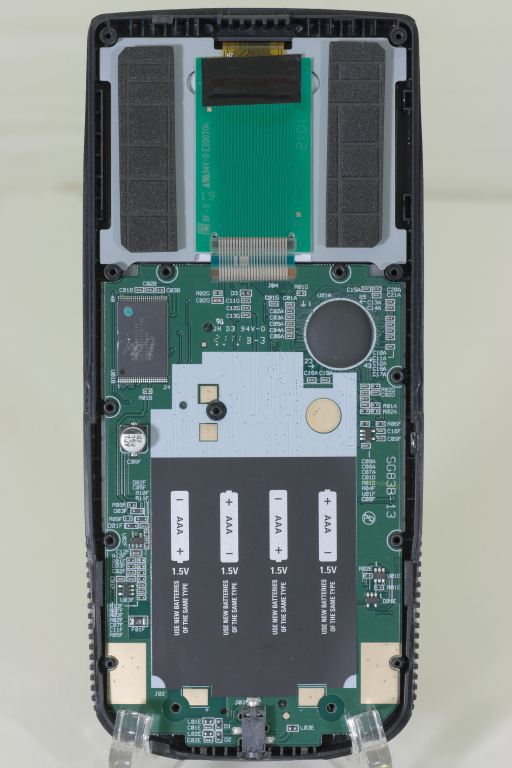

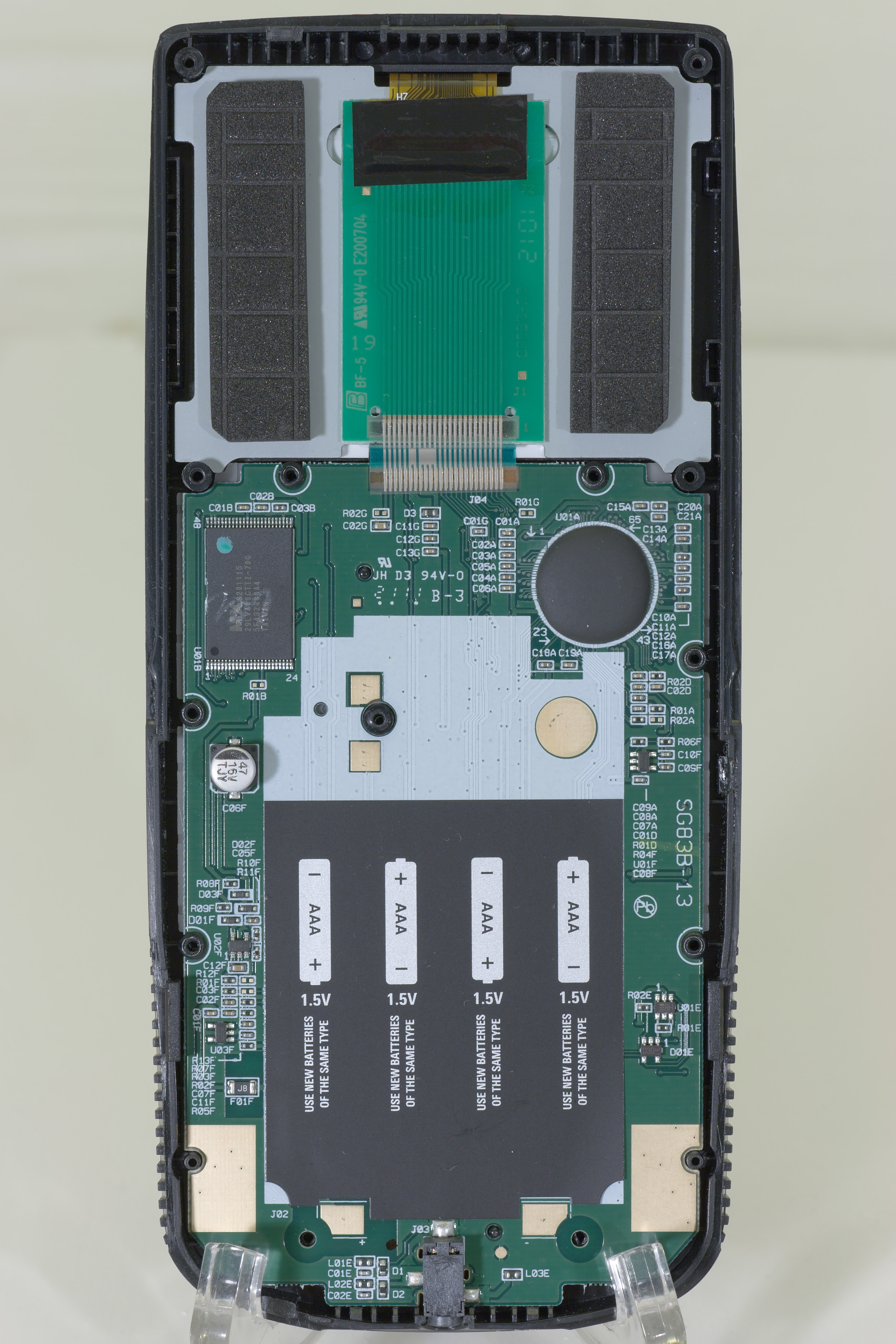

SG83B-13 for the main PCB and SG83B-20 for the interposer.
Datestamp for the main PCB is the 2111 (March 15th through March 21st 2021), and the datestamp for the LCD interposer is 2101 (January 4th through January 10th 2021).
The major components are a TI REF TI-738X ASIC under the epoxy blob, and a MX29LV400CTTI-70G FlashROM.
PCB TI-83 Plus 1057211047 rev. F
PCB TI-83 Plus 1057211047 rev. F
